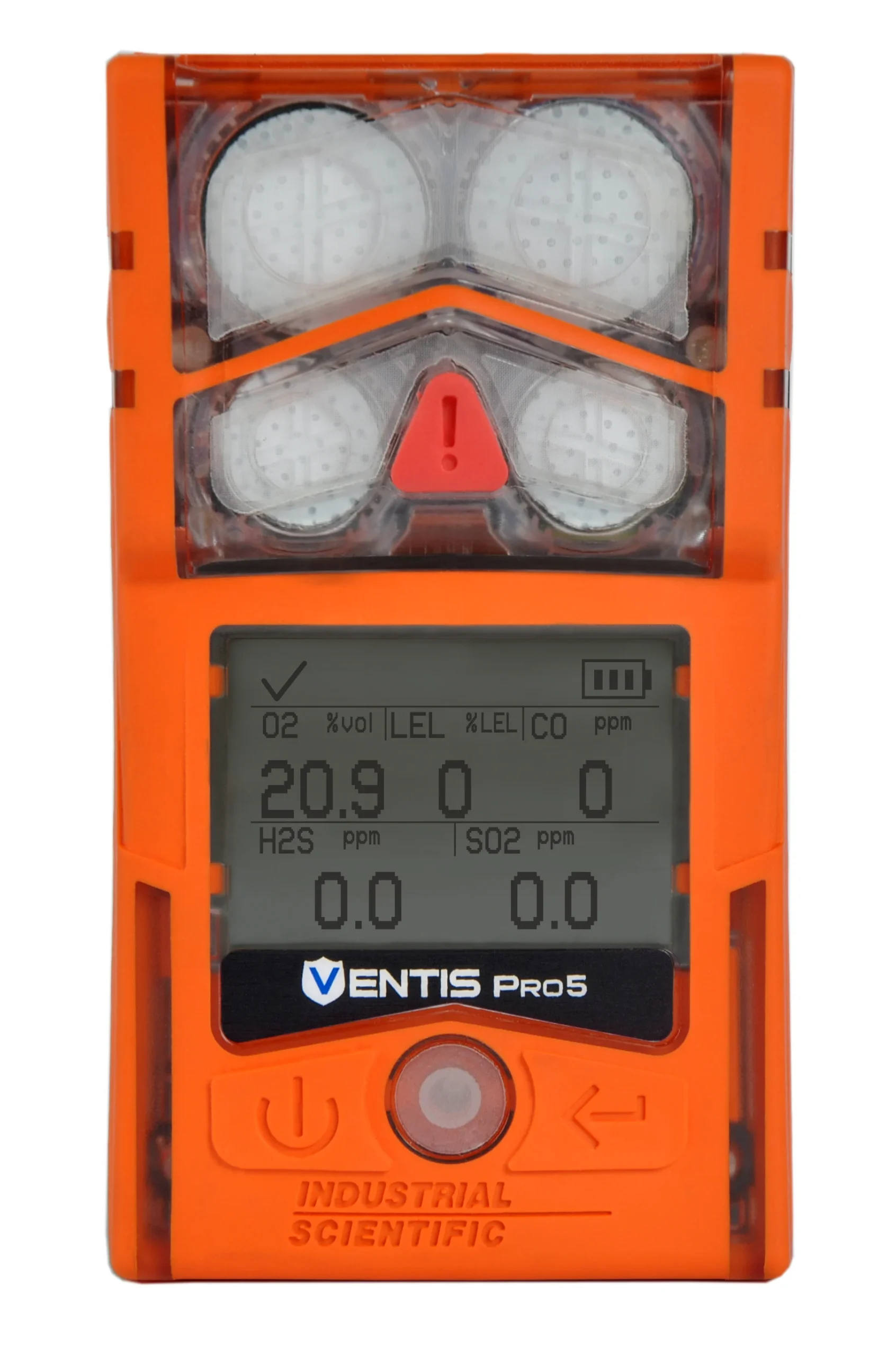

Industrial Scientific Ventis Pro5
Detect up to five gases simultaneously with the rugged, wireless, Ventis Pro5
The Most Flexible & Connected 5-Gas Monitor
The Ventis® Pro5 5-gas monitor gives you the power to monitor up to five gases simultaneously and manage worker safety any time, anywhere. This multi-gas monitor connects workers for live monitoring to instantly receive real-time location data, man-down alarms, and gas alerts so that your team always has help.
Connect Your Workers to Safety with the Ventis® Pro5 Five Gas Monitor
Connectivity is critical to collecting valuable site safety data and getting workers the help they need, when they need it.
See all your people in one place with flexible, automatic connectivity to iNet Now live monitoring using cellular, wi-fi, or satellite. Respond quickly in an emergency with real-time alerts that show who needs help, why they need help, and where they’re located.
The result? A fully-connected workforce—without additional infrastructure or IT setup.
Included with Instrument Purchase:
- Instrument with designated sensors
- Rechargeable Battery
- Suspender Clip
- Quick Start Guide
- Ventis Charger
- Calibration Cup
- Calibration Tubing
Optional Accessories:
- Single-Unit Charger
- Single-Unit Automotive Charger, 12 VDC
- Single-Unit Truck-Mount Charger, 12VDC w/Cigarette Adapter
- Single-Unit Truck Mount Charger, 12VCD Hard Wired
- Ventis 6-Unit Charger
- DSXi Docking Station
- Calibration Cup
Weight: 200g
Dimensions: 104 x 58 x 36mm
IP68 @ 1.5m for one hour
Sample Flow Rate: 250ml/min Lower Limit 62.5ml/min Upper Limit 415ml/min
Temperature Range: -40°C to 50°C
Relative Humidity: 15-95% RH (Non-Condensing)
Pressure Range: 0.8 to 1.2 atm (80kPa to 120kPa)
Warranty: 4 Years on Pump, O2, LEL, CO and H2S sensors, 1 Year for PID Sensor, 2 Years on all other sensors and batteries
Battery Run Time and Charge Time
- Wi-fi Battery: 14 hours Run time, up to 7.5 hours Charge time
- Cellular Battery: 14 hours Run time, up to 8 hours Charge time
- Standard Battery: 12 hours Run time, up to 4 hours Charge time
- Slim Extended Battery: 25 hours Run time, up to 7.5 hours Charge time
- Extended Run-time Battery: 23 hours Run time, up to 7.5 hours Charge time
Gas Types and Ranges:
CATALYTIC BEAD
Combustible Gases: 0-100% LEL in 1% increments
Methane (CH4): 0-5% of vol in 0.01% increments
ELECTROCHEMICAL
Ammonia (NH3): 0-500 ppm in 1 ppm increments
Carbon Monoxide (CO): 0-2,000 ppm in 1 ppm increments
Carbon Monoxide High (CO High): 0-9,999ppm in 1 ppm increments
Carbon Monoxide (CO/H2 low): 0-1,000 ppm in 1 ppm increments
Carbon Monoxide/Hydrogen Sulfide: CO: 0-1,500 ppm in 1 ppm increments
H2S: 0-500 ppm in 0.1 ppm increments
Chlorine (Cl2): 0-50 ppm in 0.1 ppm increments
Hydrogen (H2): 0-2,000 ppm increments
Hydrogen Sulfide (H2S): 0-500 ppm in 0.1 ppm increments
Hydrogen Cyanide (HCN): 0-30 ppm in 0.1 ppm increments
Nitrogen Dioxide (NO2): 0-150 ppm in 0.1 ppm increments
Oxygen (O2) (Standard/Long-Life): 0-30% of vol in 0.1% increments
Phosphine (PH3): 0-10 ppm in 0.01 ppm increments
Sulfur Dioxide (SO2): 0-150 ppm in 0.1 ppm increments
INFRARED
Carbon Dioxide (CO2): 0-5% vol in 0.01% increments
Methane (CH4): 0-5% vol in 0.01% increments
5-100% vol in 0.1% increments
Carbon Dioxide/Combustible CO2: 0-5% vol in 0.01% increments
LEL:0-100% LEL in 1% increments
Carbon Dioxide/Methane: CO2: 0-5% vol in 0.01% increments
CH4:0-5% vol in 0.01% increments
CH4:5-100% vol in 0.1% increments
Hydrocarbons: 0-100% LEL in 1% increments
Hydrocarbon (HC ULP): 0-100% LEL in 1% increments
Methane (CH4 ULP): 0-100% LEL in 0.1% increments
5.1-100% vol in 0.1% increments
PHOTOIONIZATION
Volatile Organic Compounds (10.6 eV) 0-2,000 ppm in 0.1 ppm increments
Ventis Pro4 Training Video: Ventis® Pro5
