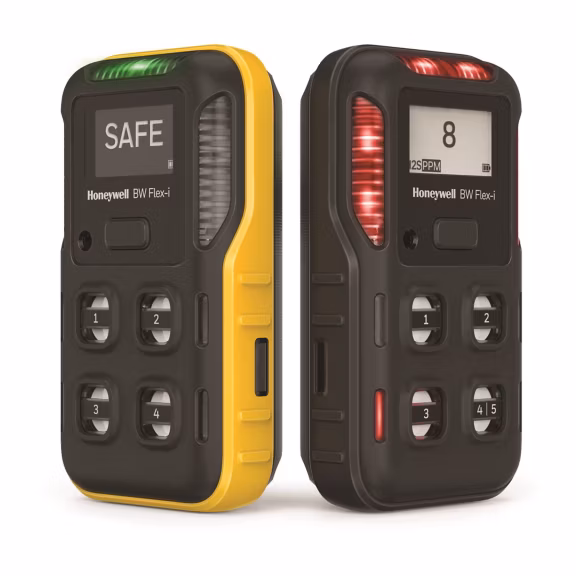

Honeywell BW Flex
Work the way you want to with more gases for more applications and ready for the connected future
Whether you’re protecting workers or first responders in industries from steel and wastewater to paper and pulp, Honeywell BW™ Flex delivers the flexibility you need. Choose from more than 15 sensors to simultaneously detect up to 4 gas hazards.REAL-TIME GAS READINGS AT A GLANCE

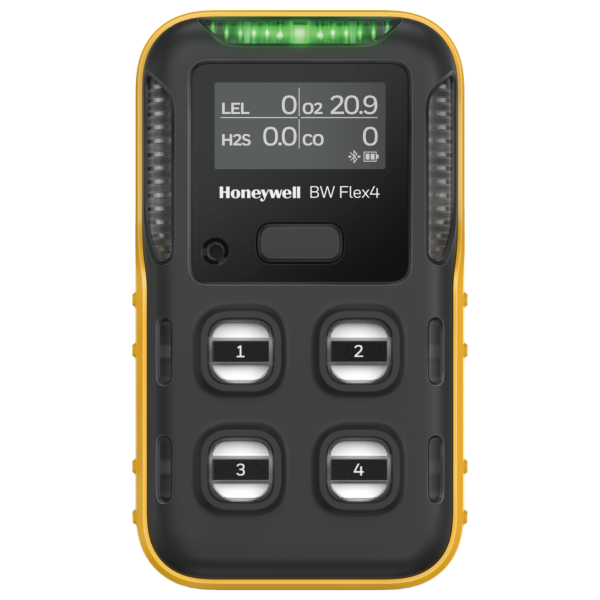

Honeywell BW™ Flex features a large high-resolution display with readings available in a wide range of languages. Vital safety information is conveyed clearly and effectively, enabling faster decision-making to protect lives in hazardous environments. Its innovative design, compact size and ease of use builds on the legacy of Honeywell BW™ gas detection products.
Honeywell BW™ Flex incorporates i-Series intelligent sensors which monitor and provide advanced predictive calibration, maintenance and end-of-life information in real-time. These advanced alerts help reduce the likelihood of failure and increase awareness so preventive action can be taken to avoid safety incidents and unexpected downtime.
Honeywell BW™ Flex can be paired with a smartphone easily via Bluetooth®. Download the Honeywell Safety Suite Device Configurator app for quick and precise device management, maintenance, reporting and analysis. Increase productivity by simplifying tasks like recording incidents and save time with one-click download for all instrument data.
*RELIABLE– Two months of battery runtime on a 4.5-hour charge with our new low-powered IR LEL sensor. No daily charging, no unexpected downtime
*COMPATIBLE– The Honeywell BW™ Flex Series is compatible with the IntelliDoX instrument management system and Honeywell Safety Suite using Bluetooth® for wireless configuration
*ACCURATE– Low-power infrared LEL sensor is immune to silicone poisoning, which means accurate monitoring of combustibles.
*EASY TO MANAGE– The IntelliFlash™ green light indicates when the detector is in compliance and the amber light indicates the need for maintenance.
*RESPONSIVE– 1series sensors respond to dangerous gas levels in seconds, even in harsh temperatures.
*EASY TO USE– Small, lightweight and wearable. One-button operation.
*COMMUNICATION.– Readily enables to communicate with Motorola MOTOTRBO
Standard Supply includes:
- Detector complete with sensors
- Stainless Steel Alligator Clip
- Shock-proof Housing
- Built-in Rechargeable battery,
- USB Charging Cable
- Calibration/Test Cap and Hose
- Quick Start Guide
Optional Accessories:
- Multi-Unit (5) wall outlet power adaptor
- USB Charger Cable
- 5-Way Cradle Charger
- IR Connectivity Kit
- 12Vdc to 24 Vdc Vehicle Power Adaptor
- 12 Vdc to 24 Vdc Direct-Wire Power Adaptor
- External Auxiliary Filter Kit
- Manual Aspirator Pump Kit w/Probe and Filter (0.3m)
- Neck Strap w/Safety Release
- Short Strap (15.2cm)
- Extension Strap (1.2m)
- Chest Harness
- Honeywell Intellidox
Weight: 189g
Dimensions: 108 x 62 x 43 mm
Humidity Range: 0-95% RH percent, 5 to 95% RH (Non-Condensing) percent
Temperature Range: -40°C to 60°C
Alarm Settings: Low, High, TWA, STEL, Negative Drift, Over Limit, Multi-Alarm, Low Battery
Alarm Types: Audible (95dB), Vibrating, Visual
Battery Run Time: 40 Days @ 8 Hours of Use/Day with NDIR CH4 Sensor or Up to 15 Hours with Catalytic LEL
Datalogging: 45 Days of data at 15 sec interval, 8hrs/day
Warranty: 3 Years
Wireless Technology: Bluetooth (BLE)
IP 66/68
Gas Types and Ranges:
- Chlorine CL2: 20 ppm, 0.1ppm resolution, 1-2 years expected operating life
- CO-H: 1000 ppm, 1ppm resolution, 2+ years expected operating life
- Carbon Monoxide CO: 1000 ppm, 1ppm resolution, 3-5+ years expected operating life
- Carbon Monoxide COSH Dual Toxic CO: 1,000 ppm, 1ppm resolution, 2+ years expected operating life
- Hydrogen Sulphide COSH Dual Toxic H2S: 100 ppm, 0.1ppm resolution, 2+ years expected operating life
- Hydrogen Sulphide H2S: 200 ppm, 0.1ppm resolution, 3-5+ years expected operating life
- Hydrogen Cyanide HCN: 50 ppm, 0.3ppm resolution, 1-2 years expected operating life
- Filtered Combustible LEL-CB-F: 100% LEL, 1% LEL resolution, 3-5+ years expected operating life
- Unfiltered Combustible LEL-CB-UF: 100% LEL, 1% LEL resolution, 3-5+ years expected operating life
- Infrared Combustible LEL-IR: 100% LEL, 1% LEL resolution, 3-5+ years expected operating life
- Carbon Dioxide NDIR-CO2: 5% VOL (50000 ppm), 0.01% Vol resolution (100ppm), 3-5+ years expected operating life
- Nitrogen Dioxide NO2: 20 ppm, 0.1ppm resolution, 2+ years expected operating life
- Nitrogen Oxide NO: 100 ppm, 0.1ppm resolution, 2+ years expected operating life
- Oxygen O2: 25% VOL 0.1% Vol resolution, 3-5+ years expected operating life
- Sulpher Dioxide SO2: 20 ppm, 0.1ppm resolution, 3-5+ years expected operating life
- Application
- Confined Spaces or General Workers on a Plant
- Potentially Explosive Atmospheres Found in Industrial, Marine and Mining Applications
